מכונה אוטומטית להקמת קרטון מגשית

Machine Spec:

Mechanical dimensions : L1800 × W1050 × H1820 mm

supply : 3 – phase 380 V 50 Hz 1.2 KW

Applicable air source: 0.6-0.8Mpa 600 NL/ MIN (dry air)

Machine weight: 600 KG

Forming speed: 10-12 PCS/min

Applicable materials: one-piece airplane box cardboard

Machine configuration:

PLC:Xinjie

Touch screen: Xinjie

Push button switch : Siemens APT

Contactors and relays : Schneider

Motor : Taibang

Cylinder: AirTac

Servo and drive: INVT

Machine features:

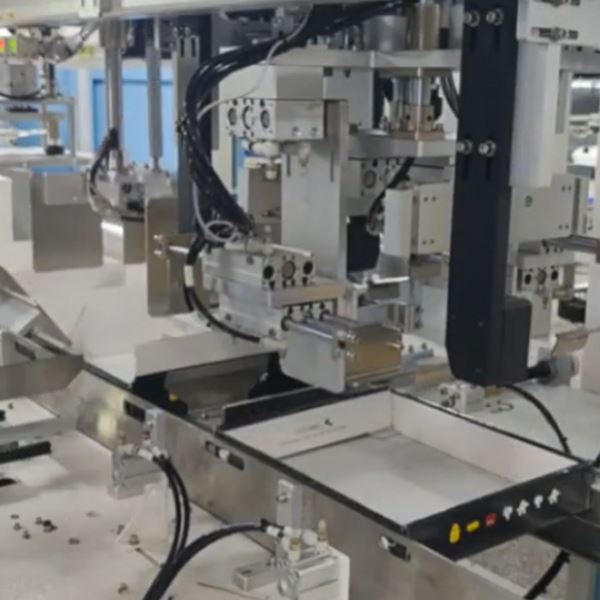

1. The machine movement is completed by the servo motor and cylinder, which is fast

and stable. It is suitable for use in food, clothing, cosmetics, electronic products,

fruit and other industries.

2. The suction cup mechanism grabs the unformed airplane box paperboard in the

material bin, quickly sends the paperboard to the forming station, and automatically

completes the punching, forming and folding function.

Note: If the carton board needs to be glued and formed, a hot melt adhesive functional

structure model can be selected.
